hydraulic fitting with o ring

The O-ring plays an important sealing role in the hydraulic joint, ensuring that the hydraulic system does not leak. Hydraulic connectors are usually divided into two types: pressure connectors and return connectors. Here are some basic information about O-rings in these two types of hydraulic joints:

Pressure joint: Pressure joint is used to connect high-pressure hydraulic pipelines, usually connected to components such as hydraulic pumps, valves, and actuators. The O-ring serves as a sealing fluid in the pressure joint, preventing pressure fluid leakage. These joints usually need to be able to withstand high pressure.

Return connector: The return connector is used to connect low-pressure hydraulic pipelines, usually connected to the hydraulic oil tank or low-pressure oil circuit. The O-ring also serves as a seal in the reflux joint to prevent liquid reflux or external pollutants from entering the system.

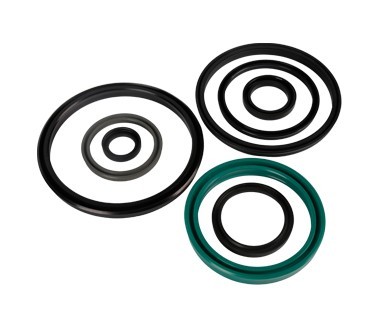

The O-ring in a hydraulic joint is usually located on the sealing surface or groove of the joint. These O-rings are typically made of materials that are resistant to high pressure, oil, and wear, such as NBR (nitrile rubber), Viton (fluororubber), or EPDM (ethylene propylene rubber). The selection of materials depends on the working conditions, fluid type, and temperature of the hydraulic system.

Replacing O-rings in hydraulic connectors usually involves the following steps:

Turn off the hydraulic system and release the pressure.

Remove the connector and separate it to expose the O-ring.

Carefully remove the old O-ring with appropriate tools.

Clean the connector surface and sealing groove to ensure there is no residue or dirt.

Install a new O-ring and ensure it is correctly installed in the sealing groove without flipping or twisting.

Reinstall the connector to ensure it is correctly aligned and tightened correctly.

Restart the hydraulic system and check for leaks.

It should be noted that the maintenance and repair of hydraulic systems usually require professional knowledge and skills. If you are not familiar with or unsure of the operating procedures, it is best to have hydraulic system maintenance professionals perform these operations to ensure safety and correctness. Follow the manufacturer's recommendations and maintenance manual to ensure system performance and reliability.
